AML Transaction Monitoring - Administration Panel Overview

The AML Transaction Monitoring GUI enables operators to configure custom rulesets, define value sets and actions for transaction monitoring, and manage user watchlists. The system is currently being enhanced with a testing feature for dry‑run ruleset validation and an analytics dashboard for monitoring AML transaction patterns and statistics.

Purpose & scope

This documentation covers the primary processes within the AML configuration module of the partnerbank Admin Panel.

Name	Description
Ruleset management	Creating and managing rule configurations for transaction monitoring.
Actions management	Defining actions returned by the AML system.
Value set management	Managing internal variables and stored values.
Watchlist management	Adding and removing users from blacklists and greylists.

Terminology

Name	Description
End user	Cardholder performing transactions.
Operator	User working with the Administration Panel.
Ruleset	A collection of rules stored together.
Rule	Predefined sets of conditions checked and processed after receiving a transaction verification request.
Action	Response returned by the AML system that must be processed by the external product sending the verification request.
Value set	Internal variable storing multiple values (for example: UHRC country codes in ISO Alpha‑2 format).
Watchlist	Internal storage for suspicious users, checked during transaction verification to determine appropriate decisions and actions.

RULES

This section of the GUI is responsible for managing rulesets, value sets and actions.

Rule sets

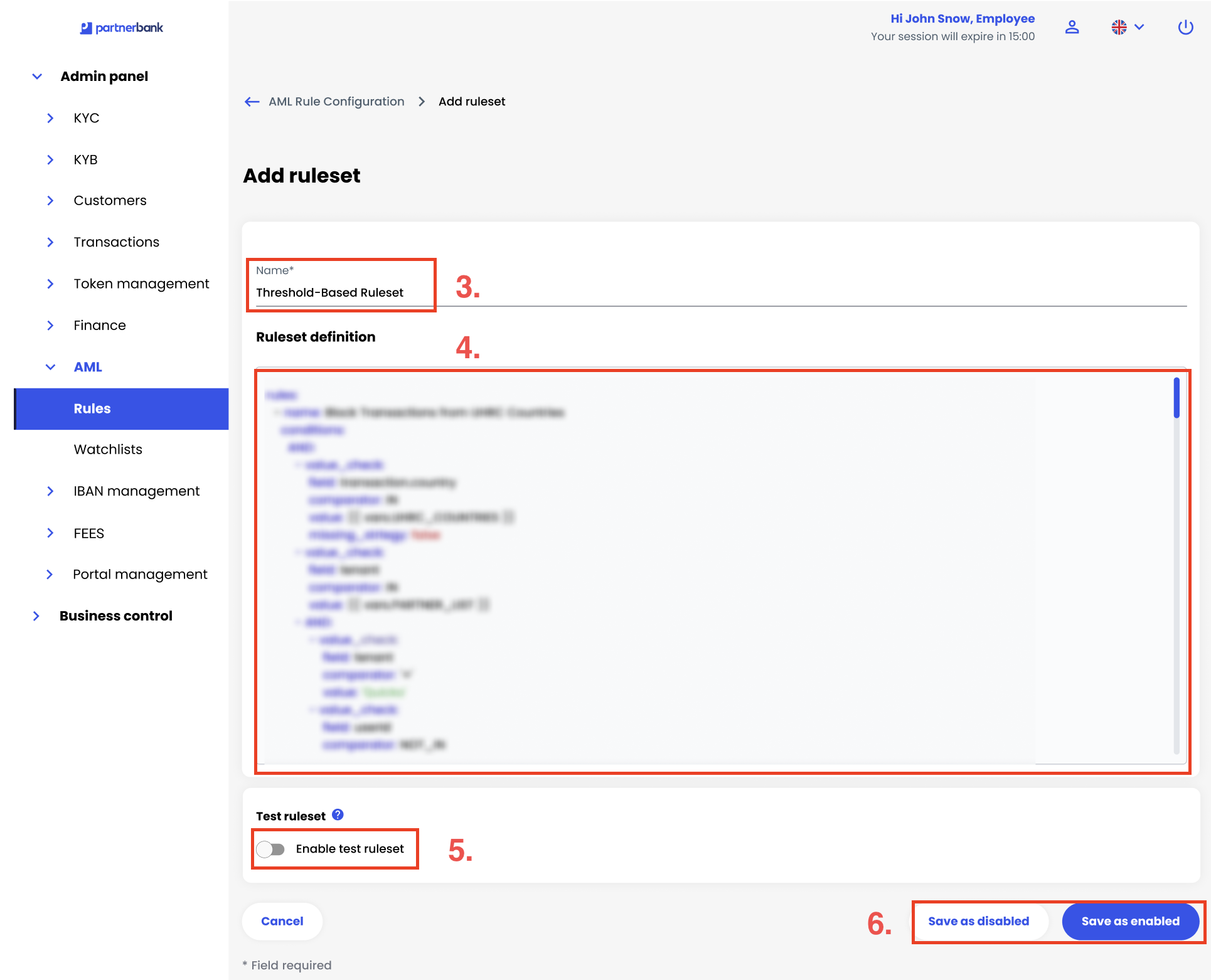

Defining a ruleset

To create a new ruleset, follow these steps. On the right you can insert a screenshot of the Add ruleset page to illustrate the process.

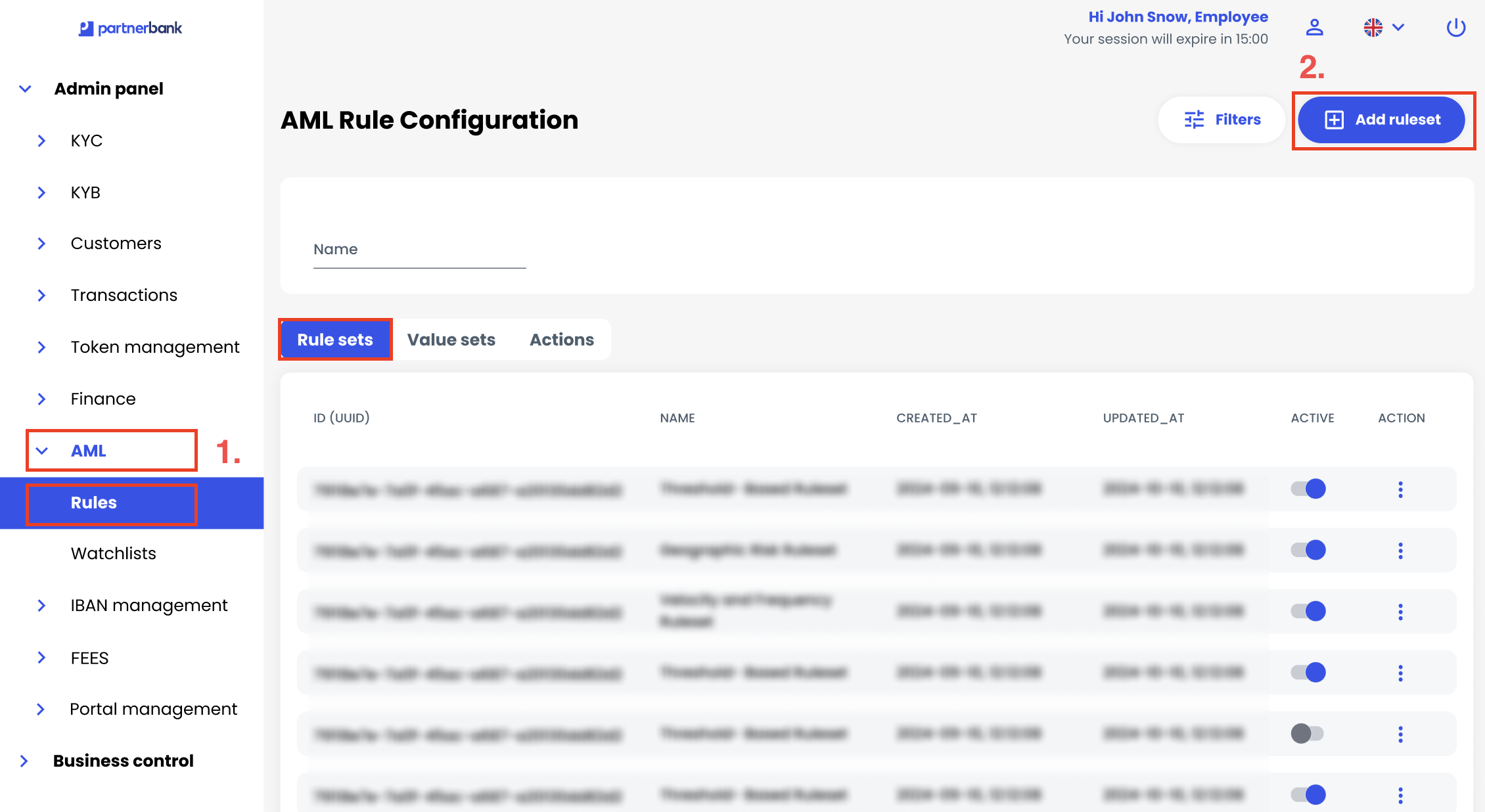

Navigate to AML → Rules and ensure the Rule sets tab is active. Click the Add ruleset button. Enter a descriptive Name for your ruleset (this field is required). Provide the full rule logic in the Ruleset definition text area (in YAML format). (Optional) Toggle Enable test ruleset to run the ruleset on historical transactions without affecting live processing. Decide whether to save the ruleset as disabled or enabled by clicking Save as disabled or Save as enabled. Use Cancel to abort.

Note: A traditional YAML builder using forms and blocks is under development. In the final version, rulesets can be defined either with the text editor or with an easy-to-use form.

Ruleset list

You can view all configured rulesets in the Rule sets tab. The list displays:

Column	Description
ID (uuid)	Unique internal identifier of the ruleset.
NAME	Descriptive name of the ruleset.
CREATED_AT	Date and time when the ruleset was created.
UPDATED_AT	Date and time when the ruleset was last modified.
ACTIVE	Indicates whether the ruleset is enabled (blue switch) or disabled (grey switch).
ACTION	Menu containing actions such as view details, edit or delete.

Ruleset details

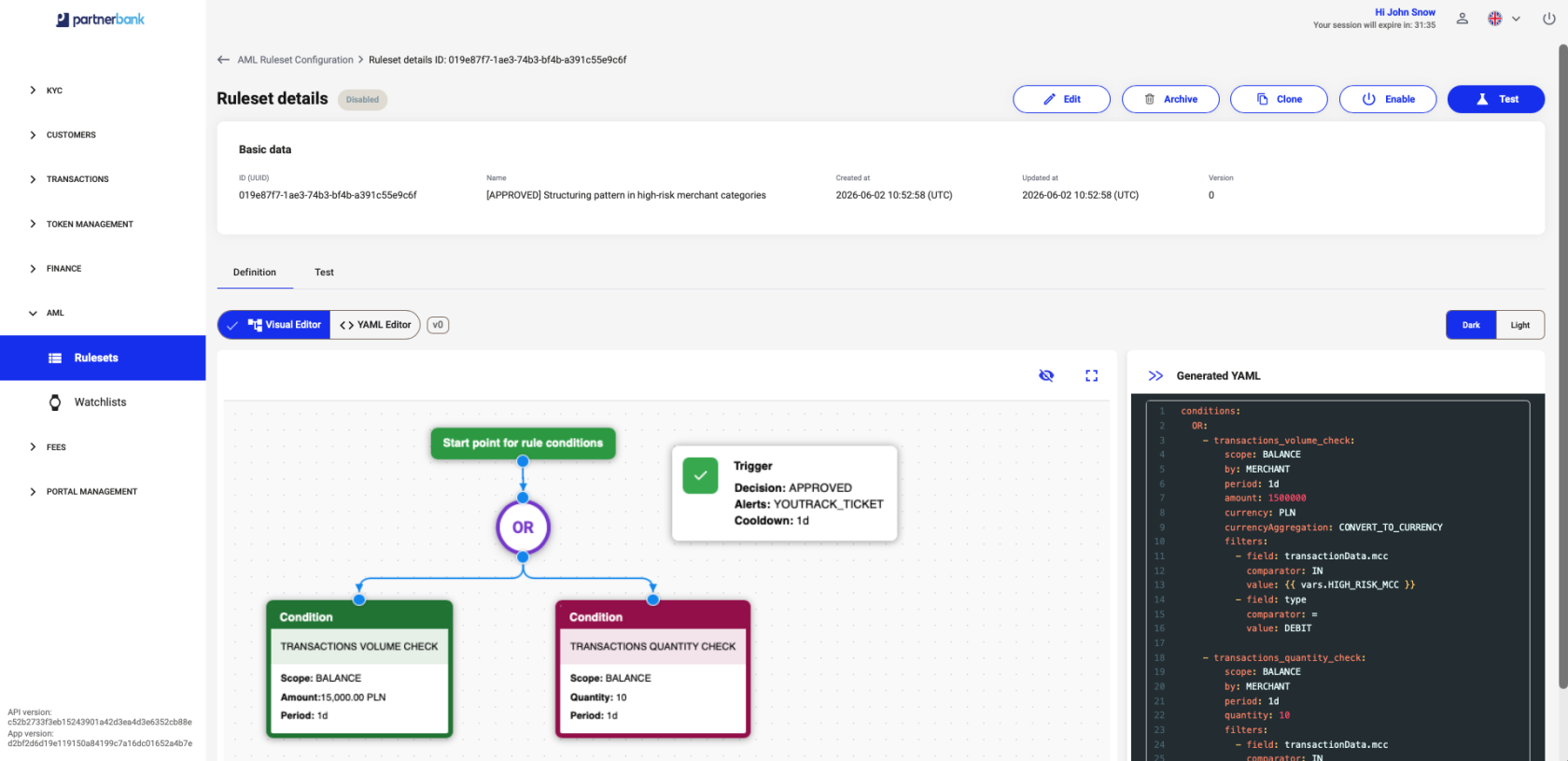

When you click a ruleset row, a detailed view opens showing all configuration fields. The table below summarises these elements.

Element	Description
Basic data	The panel that summarises the ruleset’s ID (uuid), Name, Created_at and Updated_at values.
ID (uuid)	Unique identifier of the ruleset, displayed in the Basic data panel.
Name	The descriptive name of the ruleset, shown in the Basic data panel.
Created_at	The date and time when the ruleset was created.
Updated_at	The date and time when the ruleset was last modified.
Ruleset definition tab	The tab that displays the YAML definition of the ruleset, including conditions, triggers, decisions and actions.
Ruleset tests tab	The tab used for running and viewing test results for the ruleset.
Edit button	A button that opens the ruleset edit form.
Test ruleset button	A button that runs a dry‑run test on the ruleset using historical transaction data.

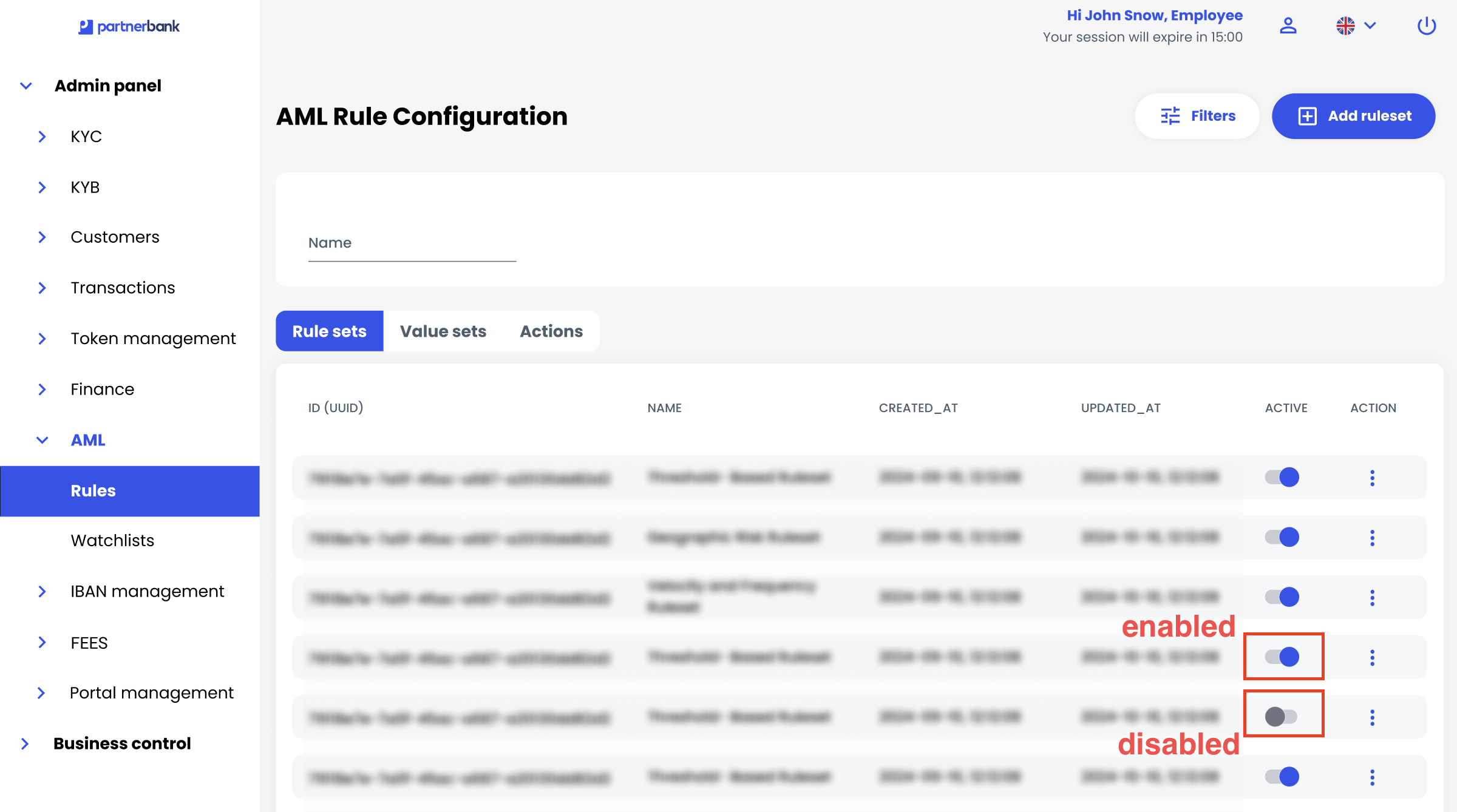

Ruleset activation / deactivation

When creating a ruleset, the operator chooses whether the ruleset should be active right away or saved in a disabled state by selecting Save as enabled or Save as disabled. Once the ruleset exists, its state can be toggled on or off at any time from the list view: use the status switch to enable or disable the ruleset and confirm the change. Changes take effect immediately after confirmation.

Status indicator	Description
Blue switch	The ruleset is enabled. The toggle switch is coloured blue and positioned to the right.
Grey switch	The ruleset is disabled. The toggle switch is grey and positioned to the left.

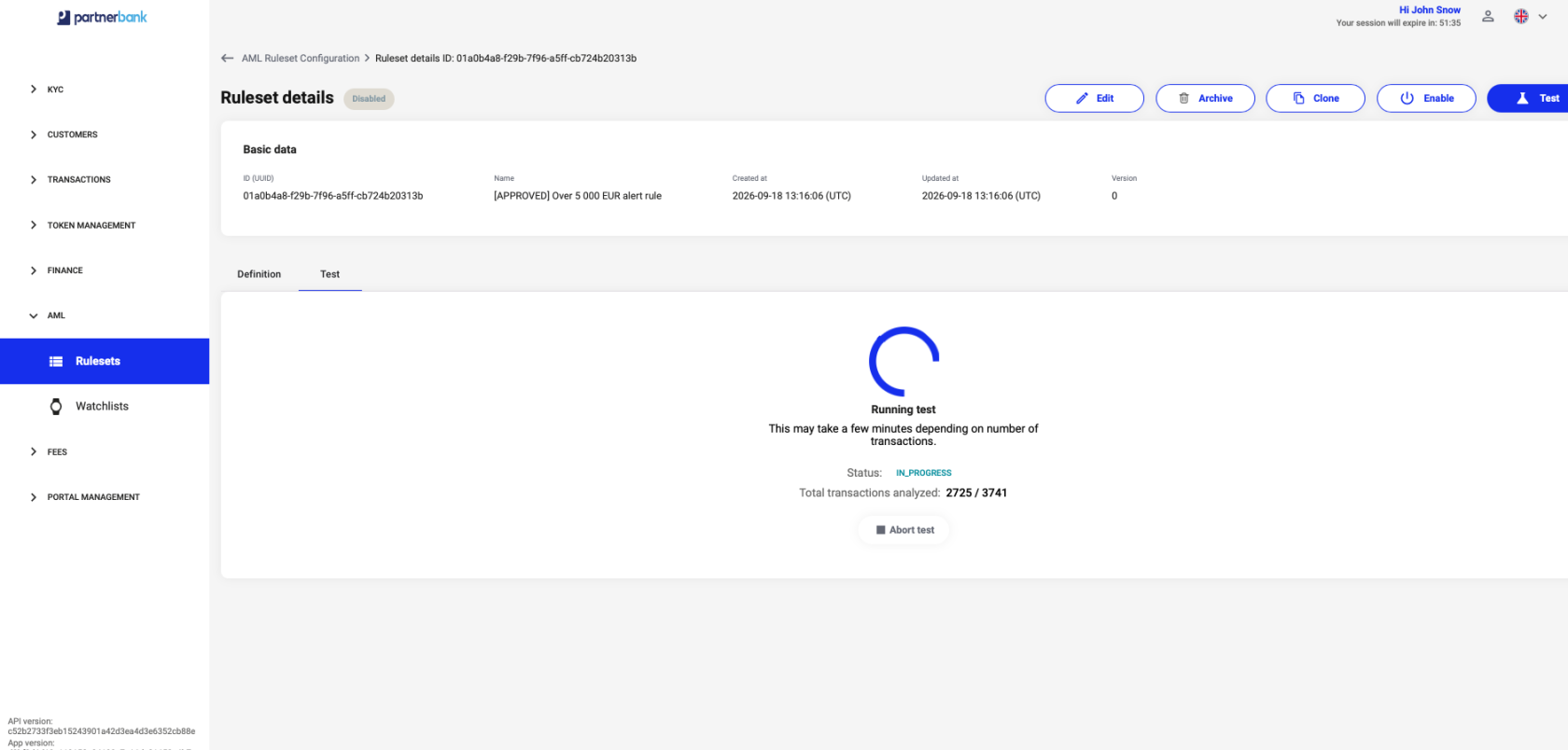

Ruleset testing (dry‑run)

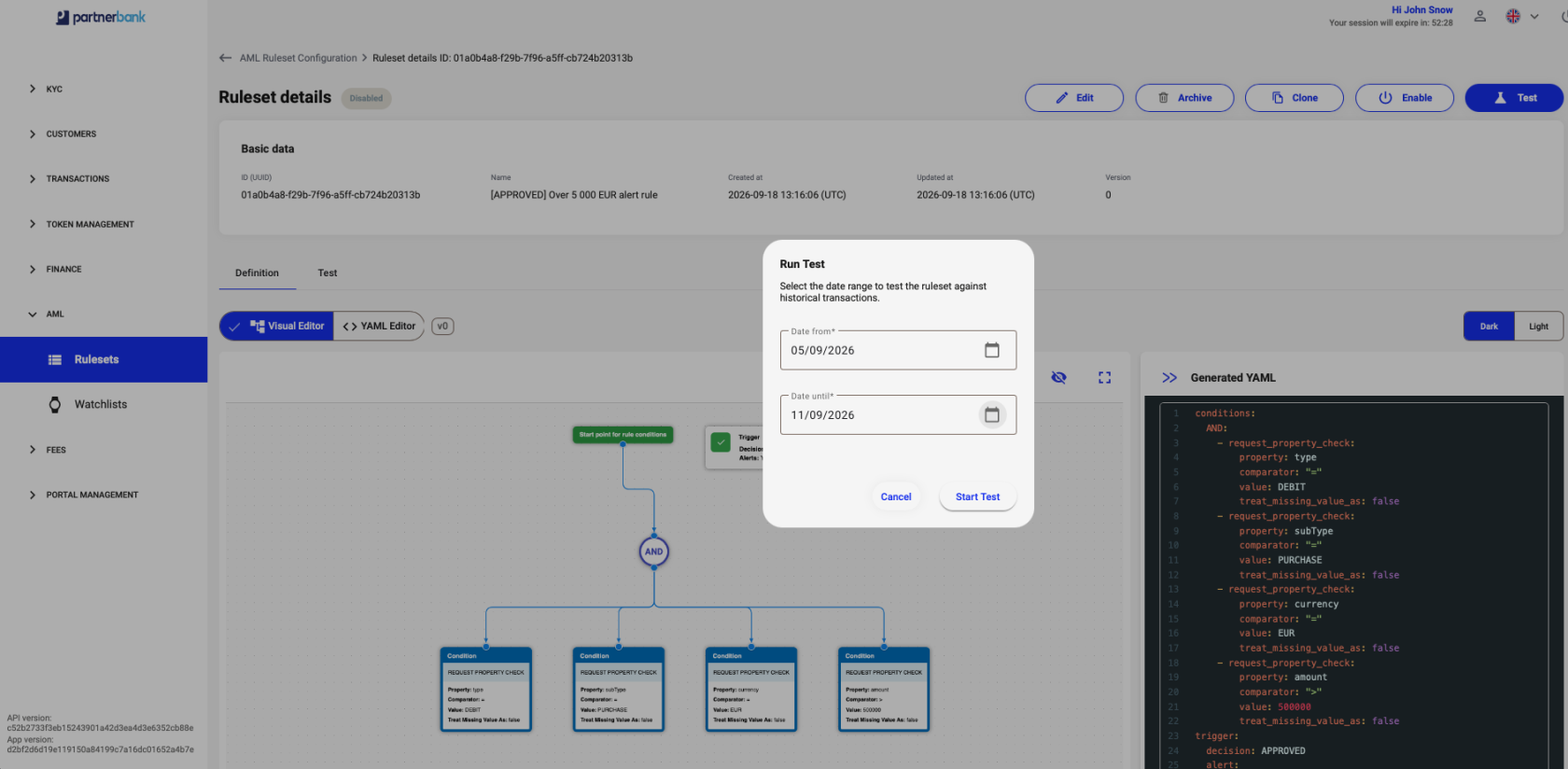

Note: Feature under development. The dry‑run engine will allow operators to run rulesets against historical transaction data and view the result that the ruleset would return without impacting live processing.

Value sets

Defining a value set

Follow these steps to create a new value set. Use the right column for a screenshot of the “Add value set” page.

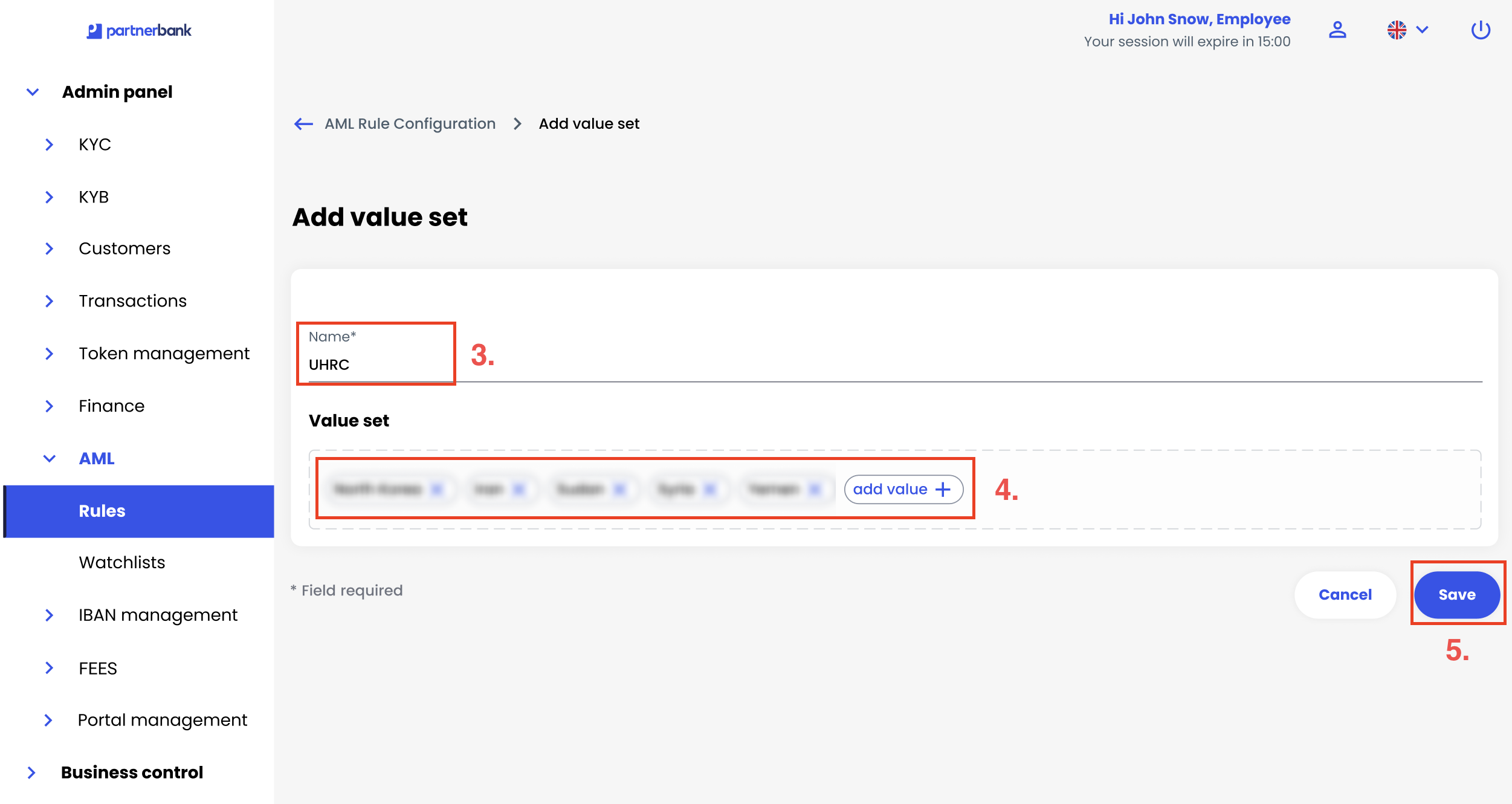

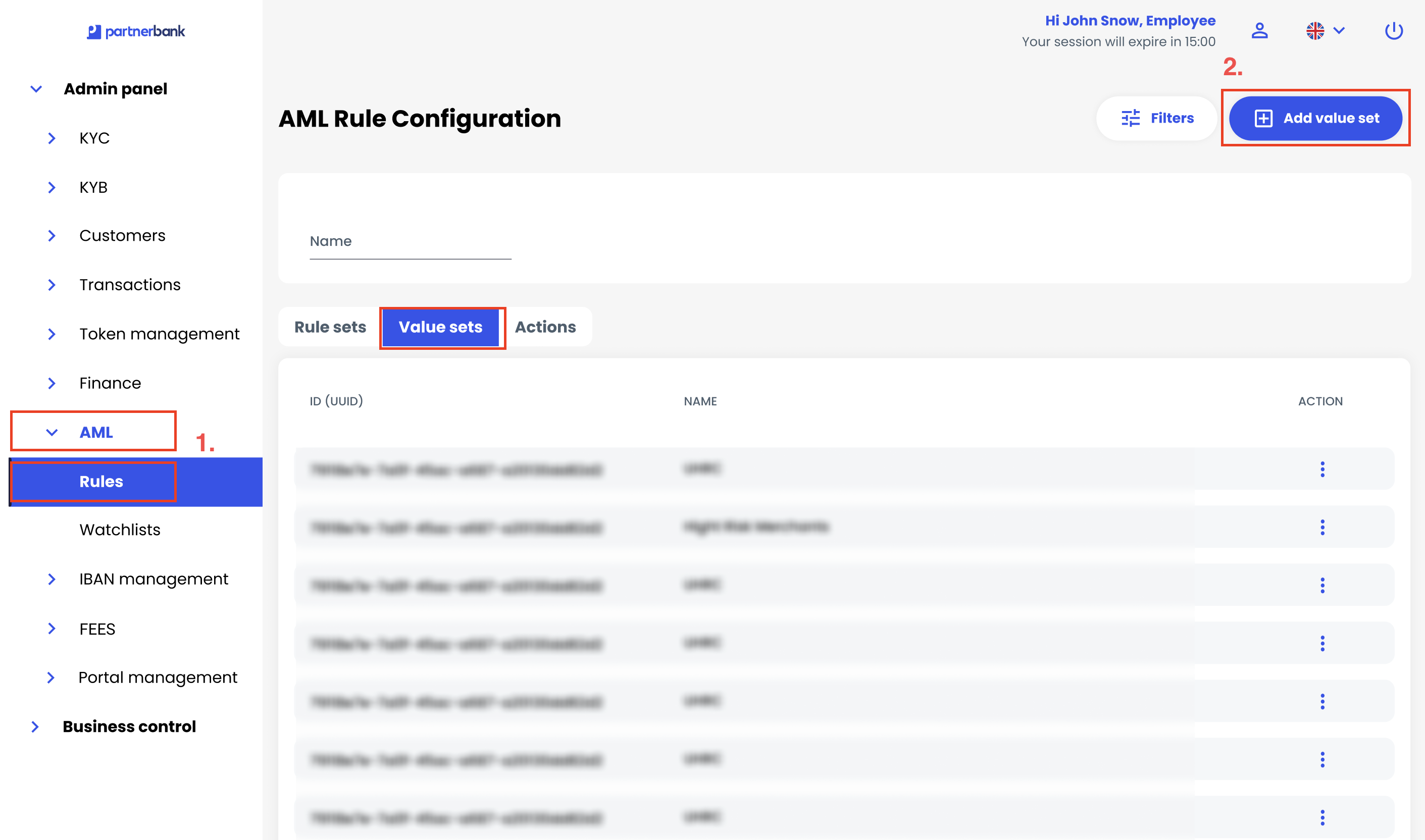

Navigate to AML → Rules and open the Value sets tab. Click the Add value set button. Provide a descriptive Name in the Name* field (this is required). In the Value set area, enter each value. Existing values are displayed as tags with an x to remove them. Use the add value + button to add additional entries. Click Save to create the value set or Cancel to discard your changes.

Value sets list

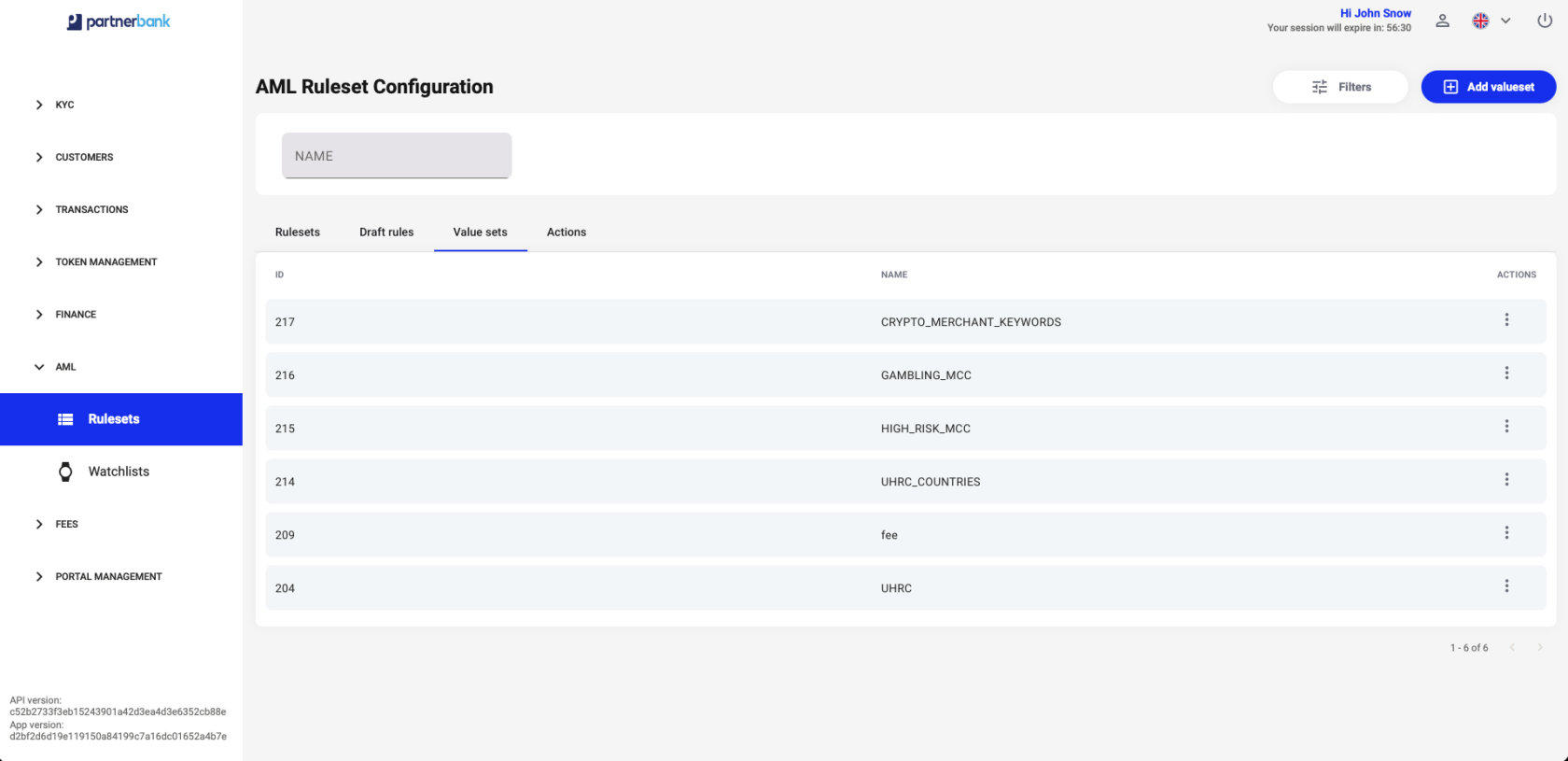

The Value sets tab lists all defined value sets. Each row includes the following columns:

Column	Description
ID (uuid)	Unique identifier of the value set.
NAME	The name of the value set.
ACTION	Menu containing available operations such as view details, edit or delete.

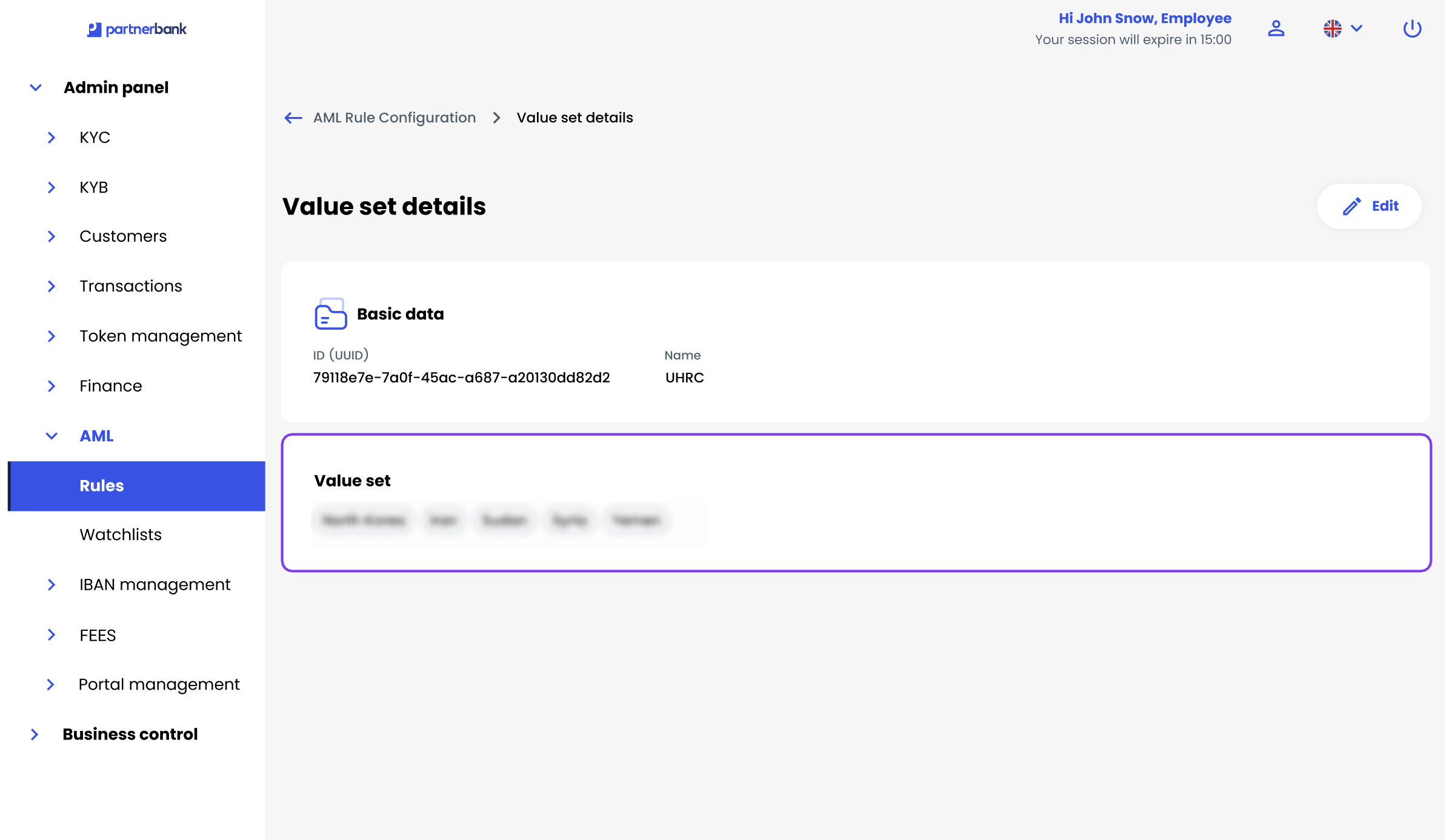

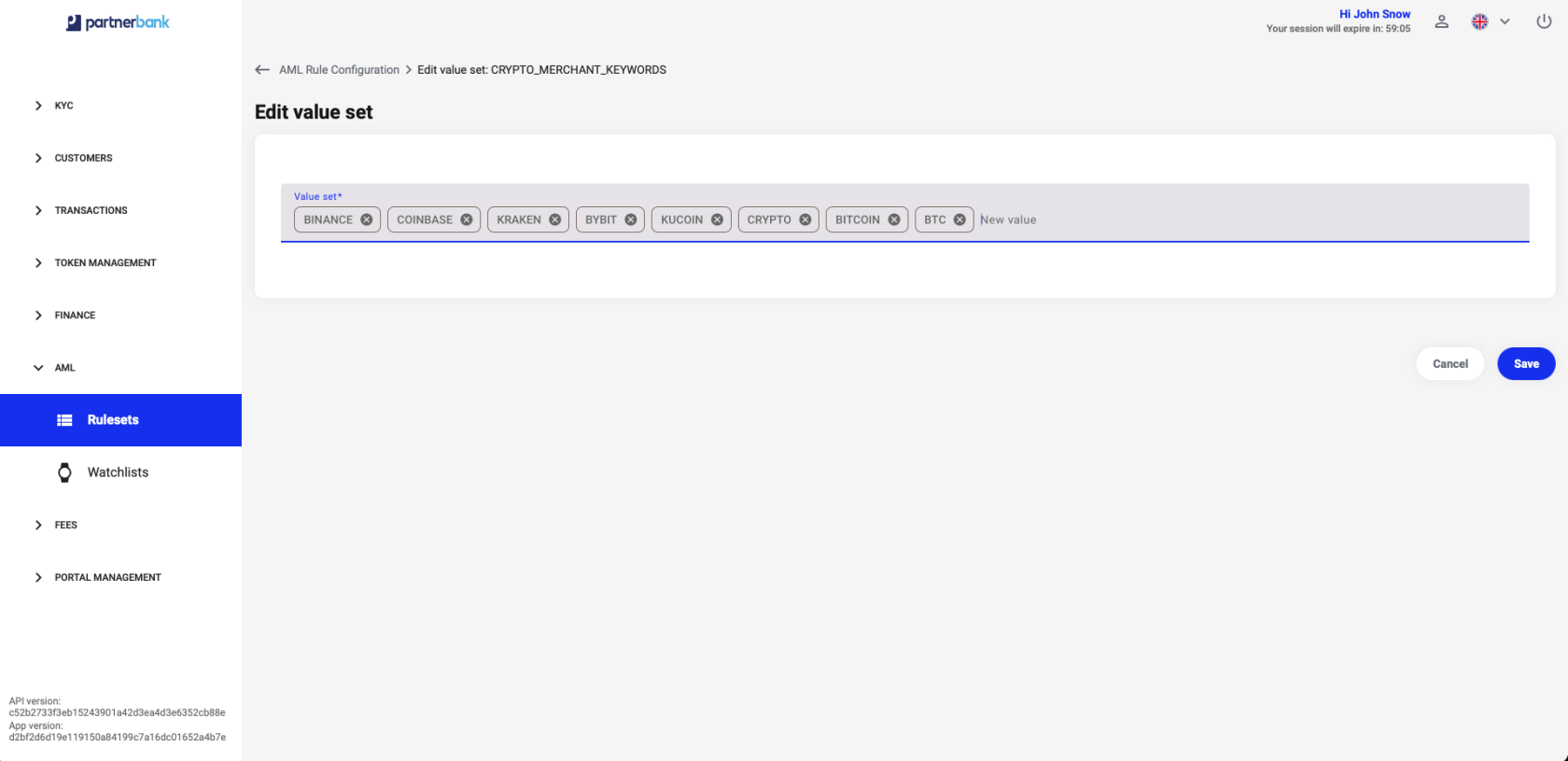

Value set details

Selecting a value set opens a detailed view where you can add or remove individual values. The elements are described below:

Element	Description
Basic data	A panel summarising the value set’s ID (uuid) and Name.
ID (uuid)	Unique identifier of the value set.
Name	The name of the value set.
Value set	The list of values stored in the set. Each value appears as a tag with an option to remove it; new values can be added using an input or the add value + button.
Edit button	A button in the top‑right corner that opens the value set edit form.

Actions

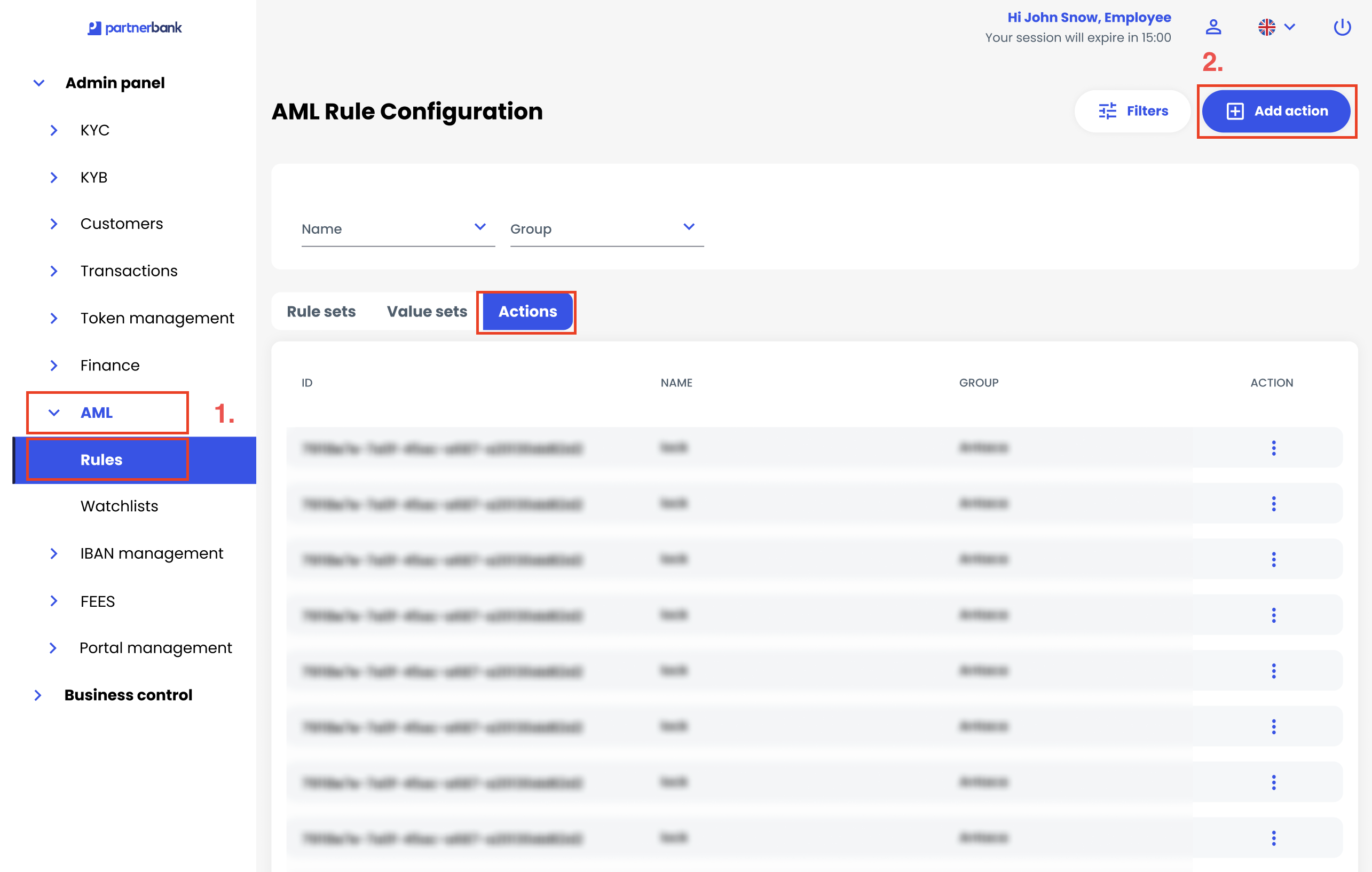

Defining an action

The table below outlines the steps for creating a new action. A screenshot of the “Add action” page can be placed in the right column.

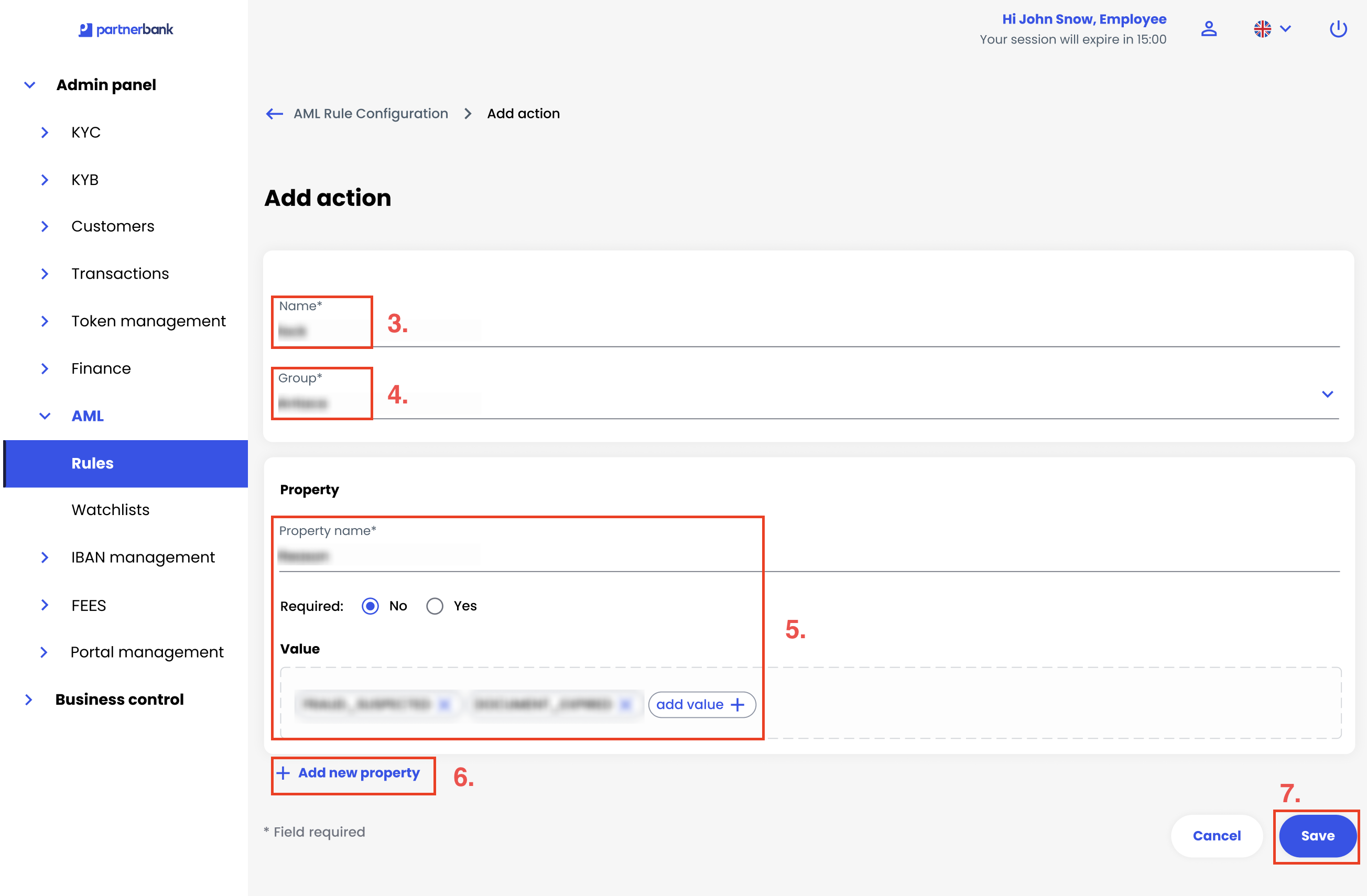

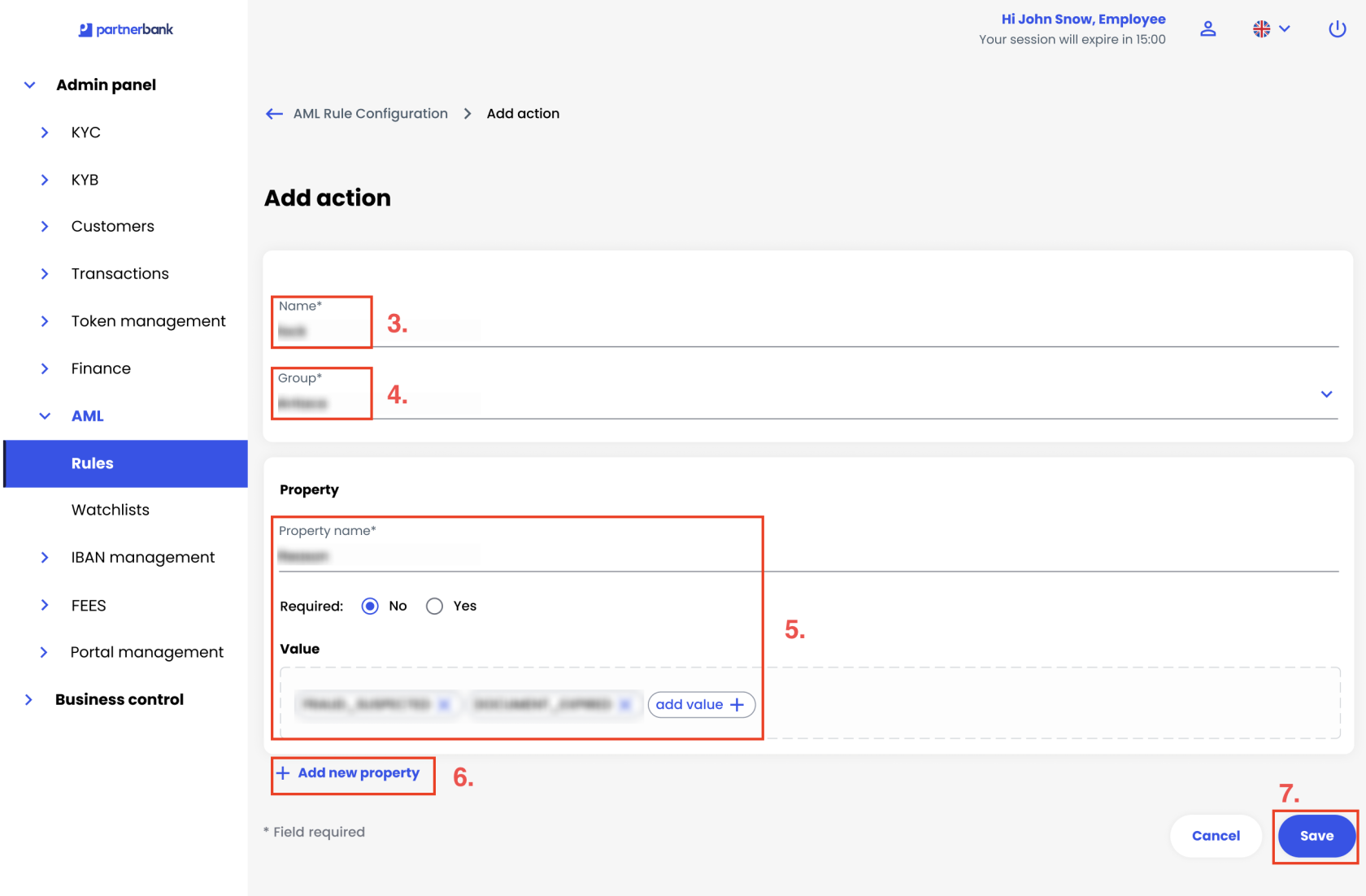

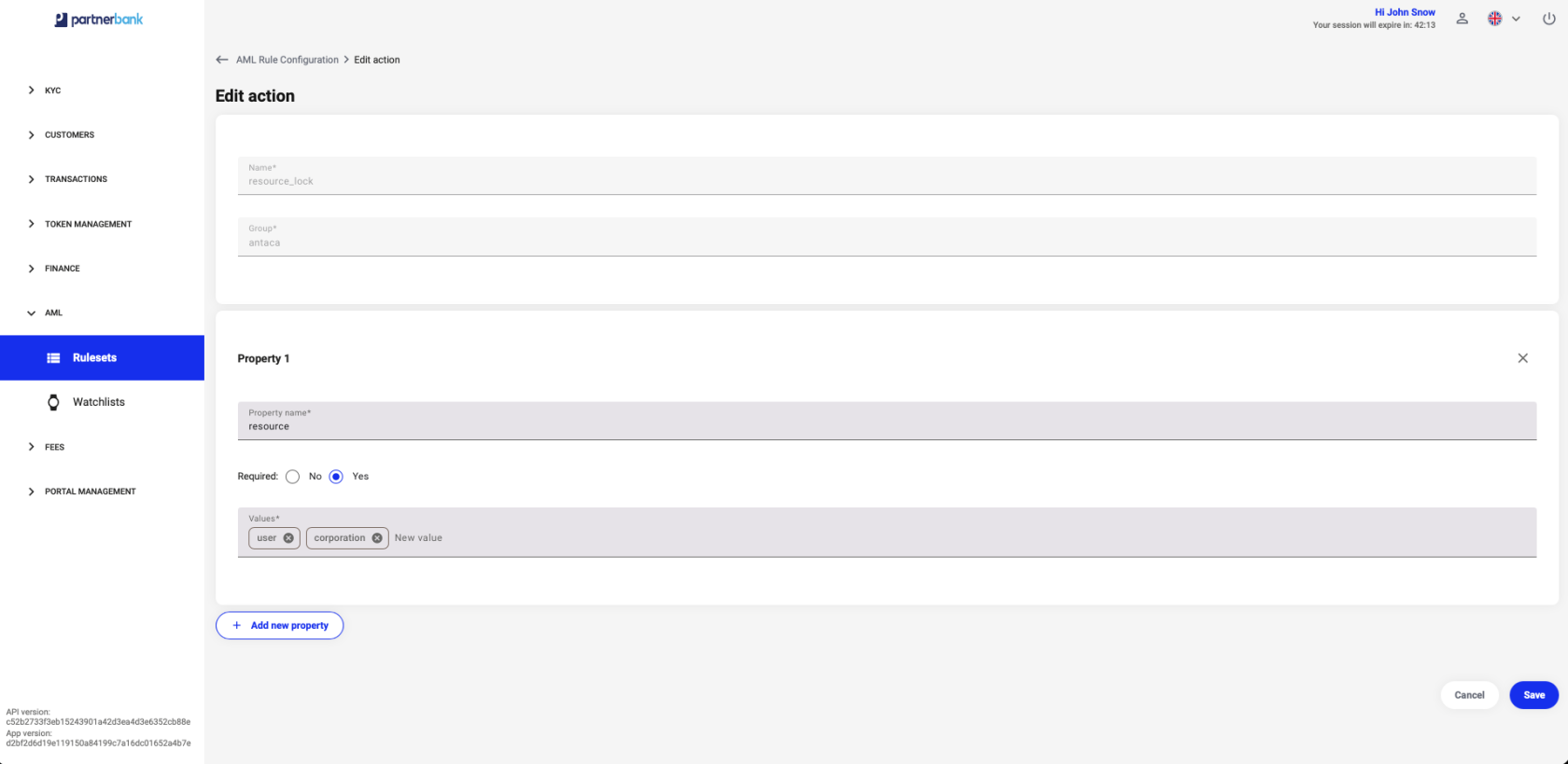

Navigate to AML → Rules and open the Actions tab. Click the Add action button. Enter the action name in the Name* field (required). Select a Group* from the dropdown list (required). Define one or more properties for the action: Provide a Property name*. Choose whether the property is required by selecting No or Yes. Enter allowed values as tags in the Value field and use the add value + button to add additional values. If additional properties are needed, click Add new property and repeat the previous step. Click Save to create the action or Cancel to discard your changes.

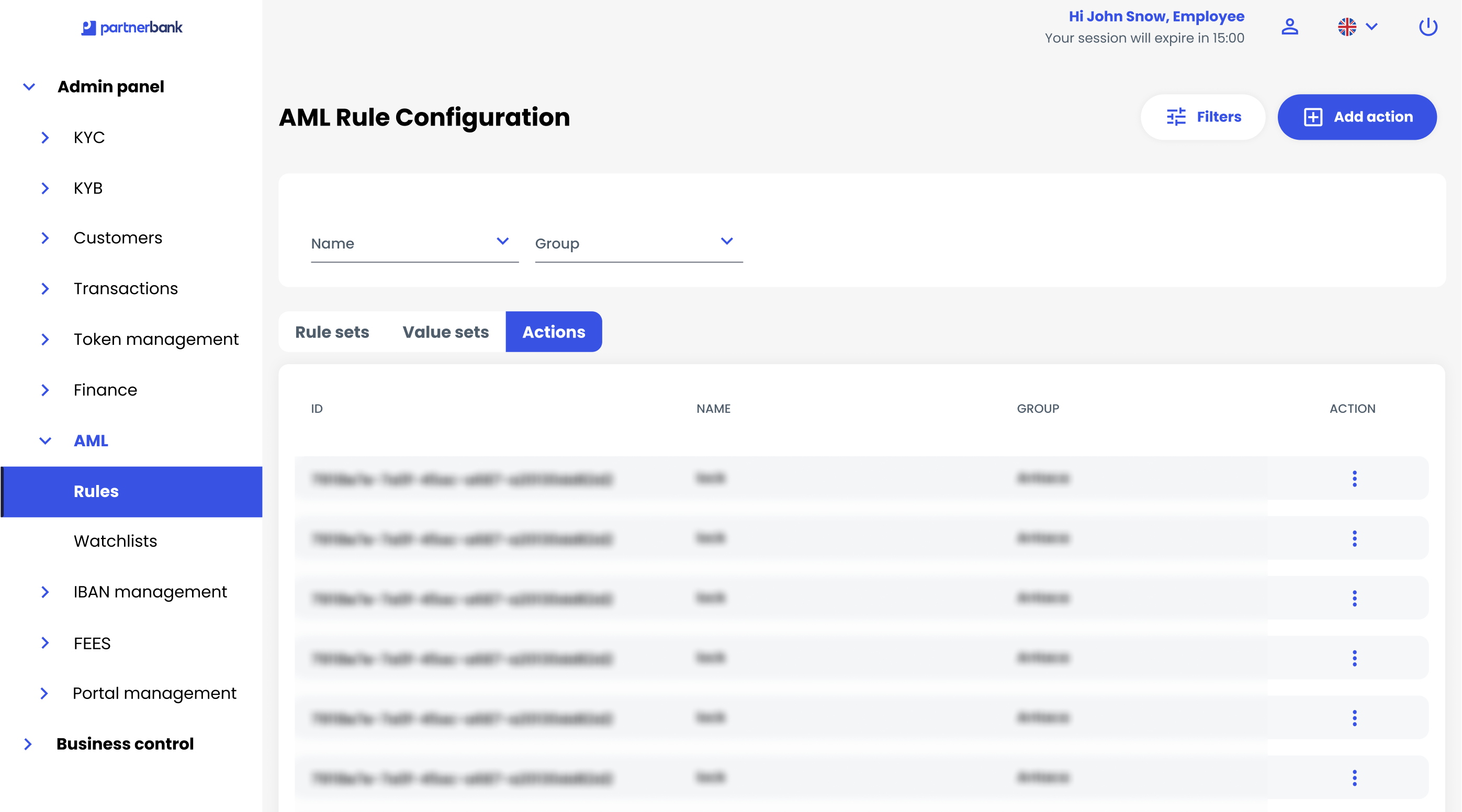

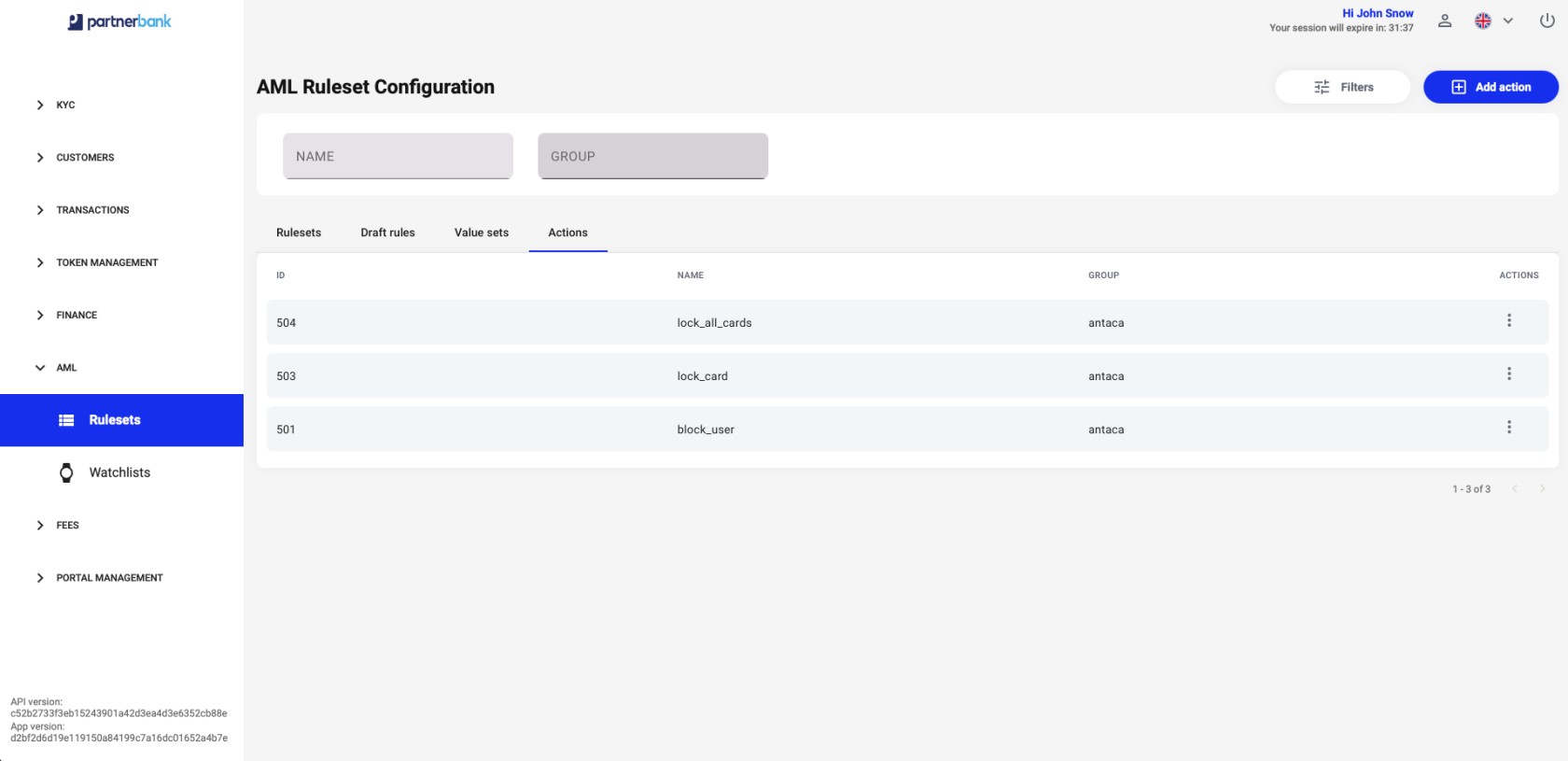

Action list

The Actions tab lists all configured actions. Each row shows:

Column	Description
ID (uuid)	Unique identifier of the action.
NAME	The name of the action.
GROUP	The group to which the action belongs.
ACTION	Menu containing available operations such as view details, edit or delete.

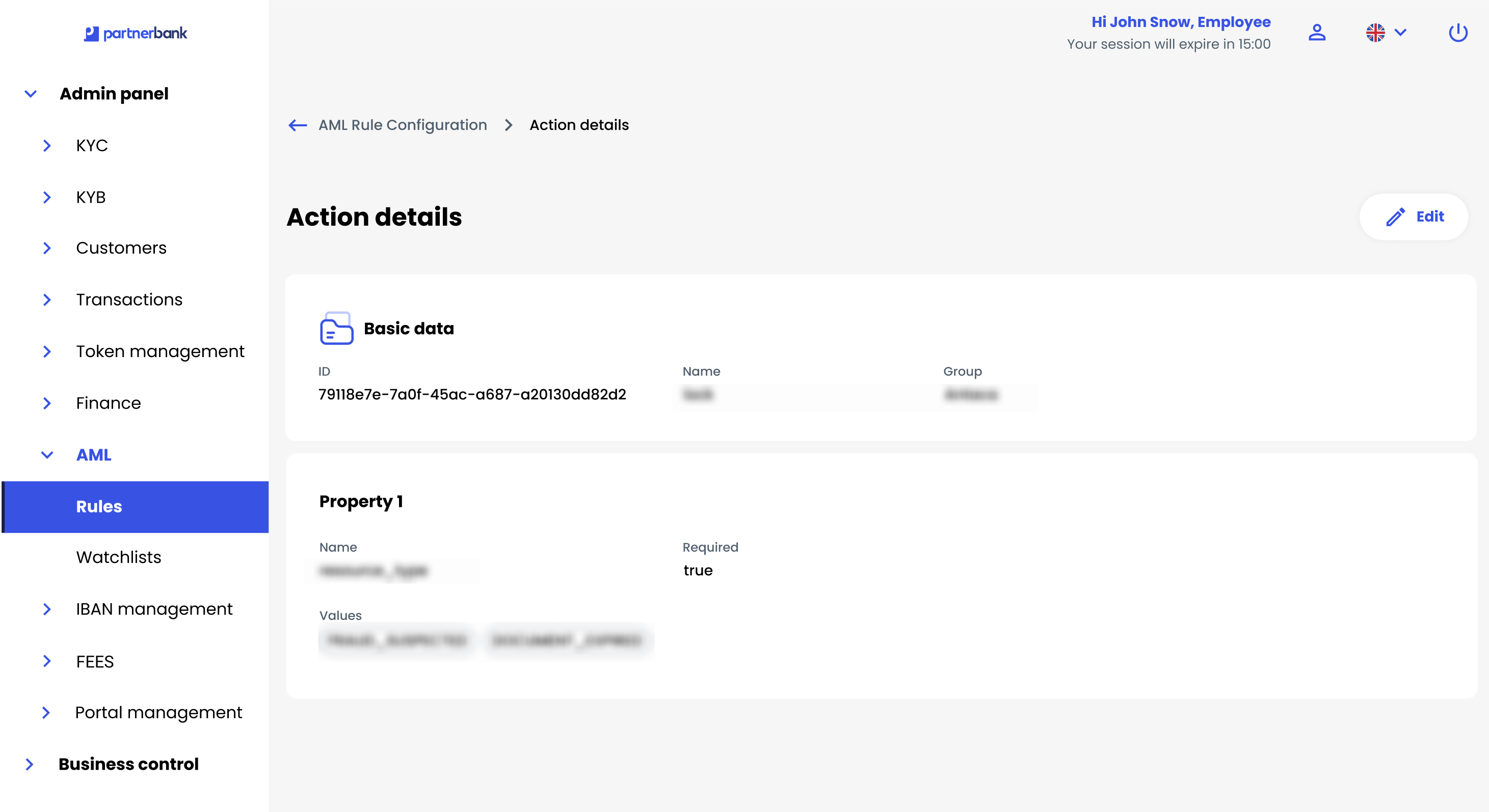

Action details

Clicking an action opens a details page that displays its configuration. The table below describes each element.

Element	Description
Basic data	A panel summarising the action’s ID (uuid), Name and Group.
ID (uuid)	Unique identifier of the action.
Name	The name of the action.
Group	The group to which the action belongs.
Property	Details for each property defined in the action. Each property contains a name, a required flag and a list of values.
Property name	The name of the property (e.g. resource_type).
Required	Indicates whether the property is mandatory (true) or optional (false).
Values	The allowed values for the property, shown as tags (e.g. FRAUD_SUSPECTED, DOCUMENT_EXPIRED).
Edit button	A button that opens the action edit form.

WATCHLISTS

The system supports two watchlist types: Blacklist and Greylist. Both lists are managed identically; you can switch between them using the tabs at the top of the watchlist management page.

Blacklist

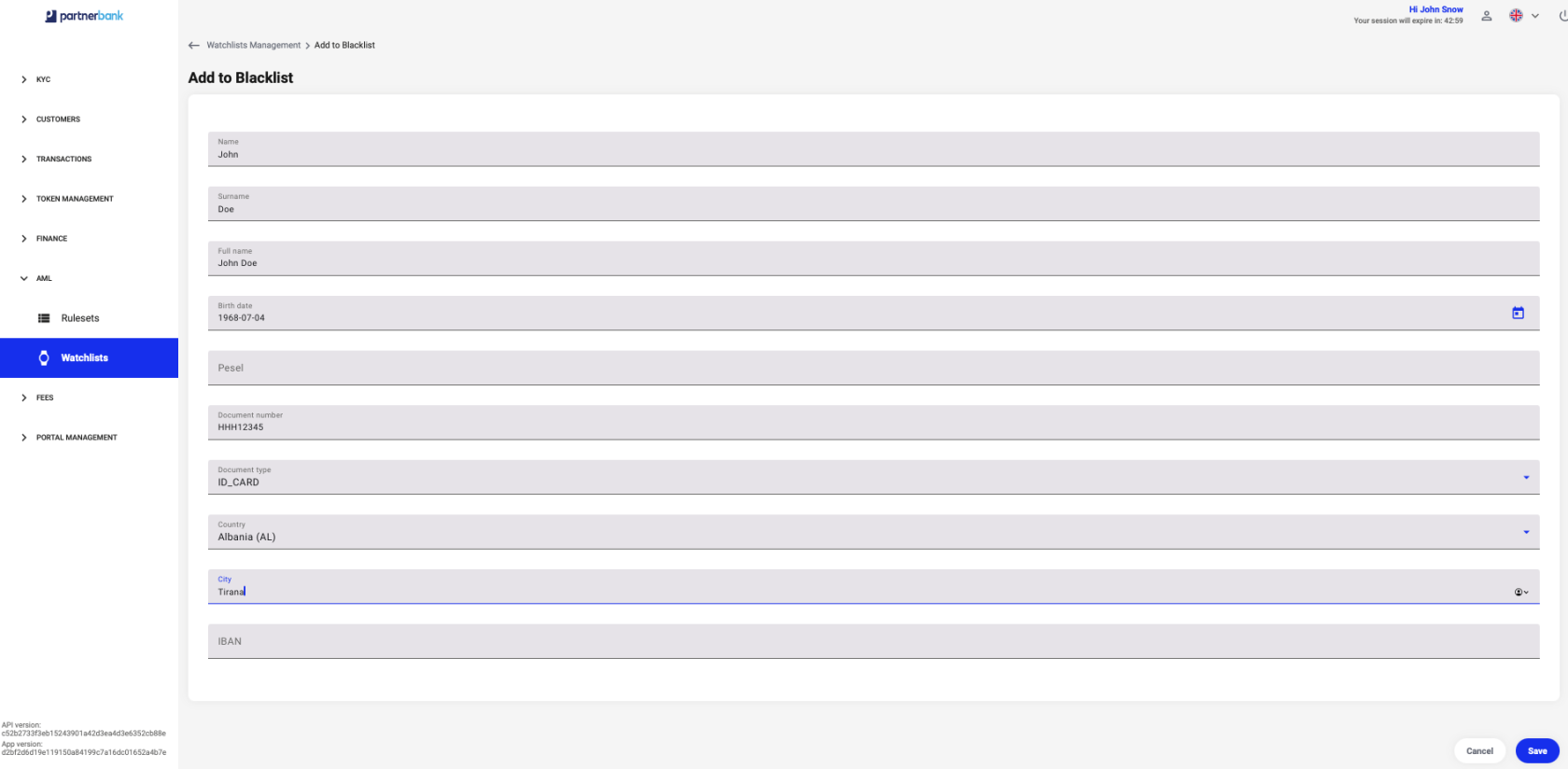

Adding a user

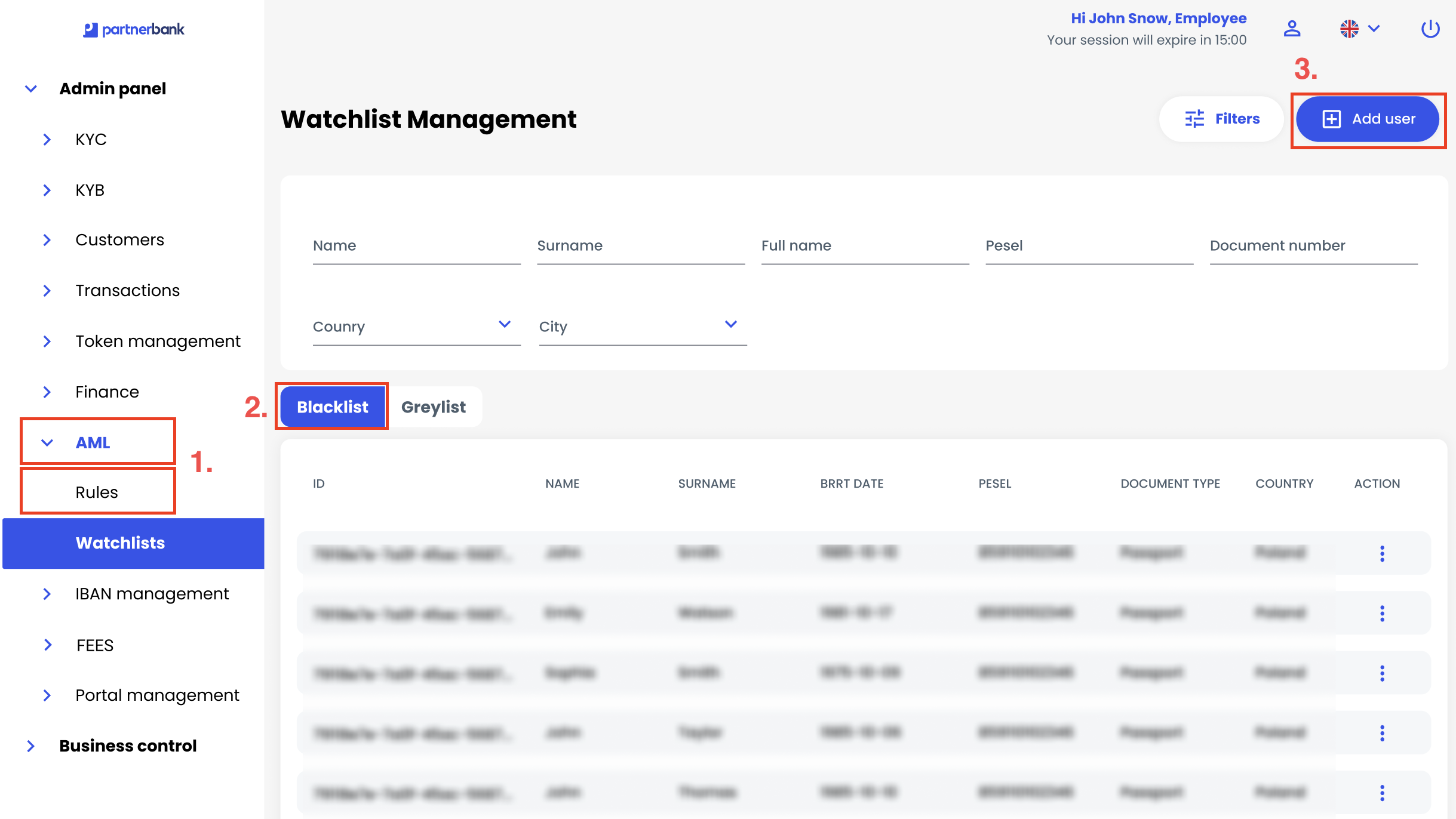

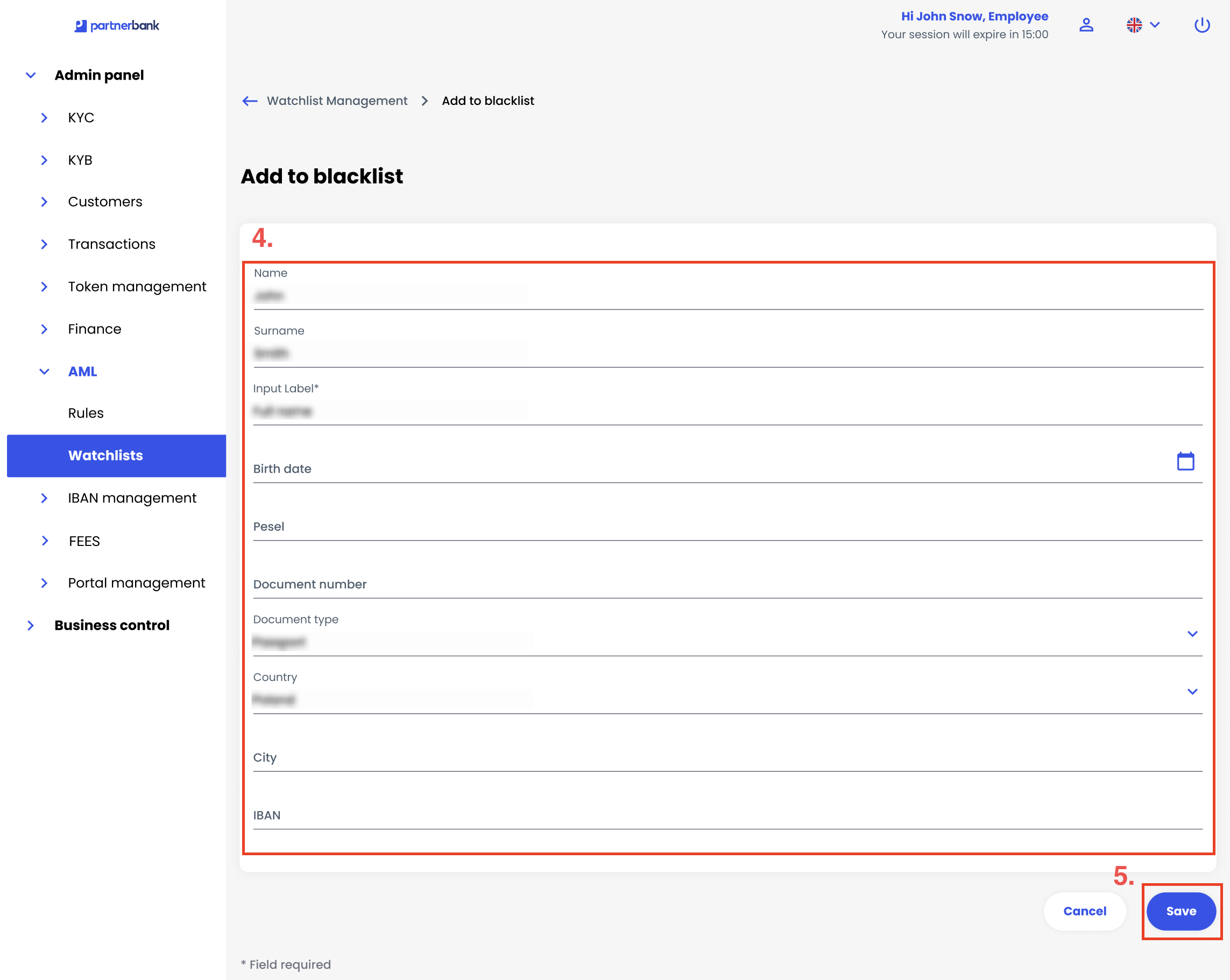

Navigate to AML → Watchlists. Select the Blacklist tab. Click the Add user button. Fill in the user information fields, including Name, Surname, Full name, Birth date, Pesel, Document number, Document type, Country, City and IBAN (if applicable). Click Save to add the user.

User information fields:

Field	Description
Name	User’s first name (required).
Surname	User’s surname (required).
Full name	The person’s full name (first and last names together).
Birth date	Date of birth (required).
Pesel	Personal identification number (PESEL) (required).
Document number	Identification document number (required).
Document type	Select from dropdown (Passport, ID card, etc.).
Country	Select country from dropdown.
City	Enter city name.
IBAN	Bank account number (if applicable).

Important: Adding a user to a watchlist does not automatically trigger any actions. A ruleset must reference the watchlist to determine whether to approve, decline or place a transaction on hold.

Removing a user

Navigate to Watchlists → Blacklist. Use the search filters to locate the user. Click the actions menu (three dots) for that user. Select Delete and confirm the removal.

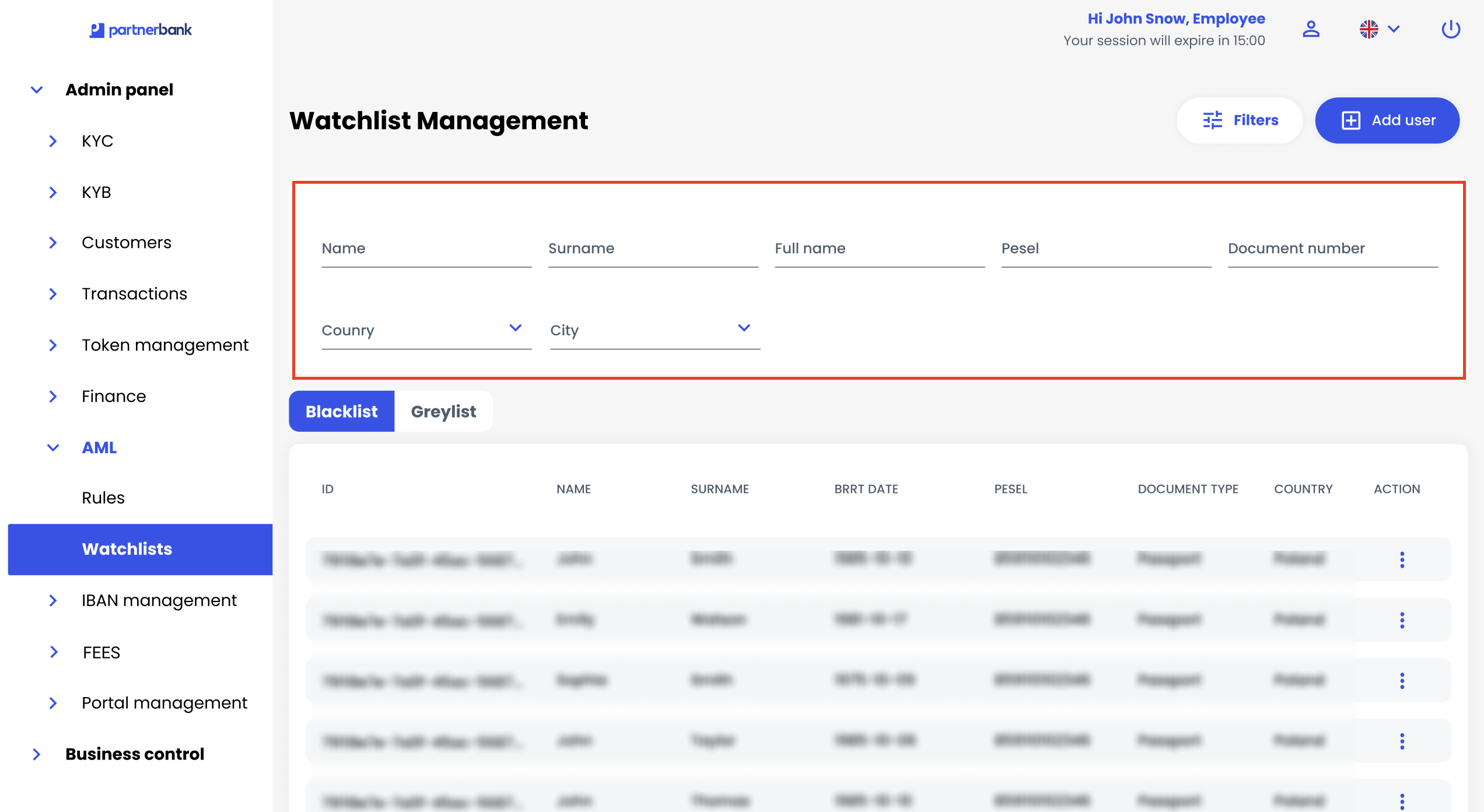

Searching and filtering

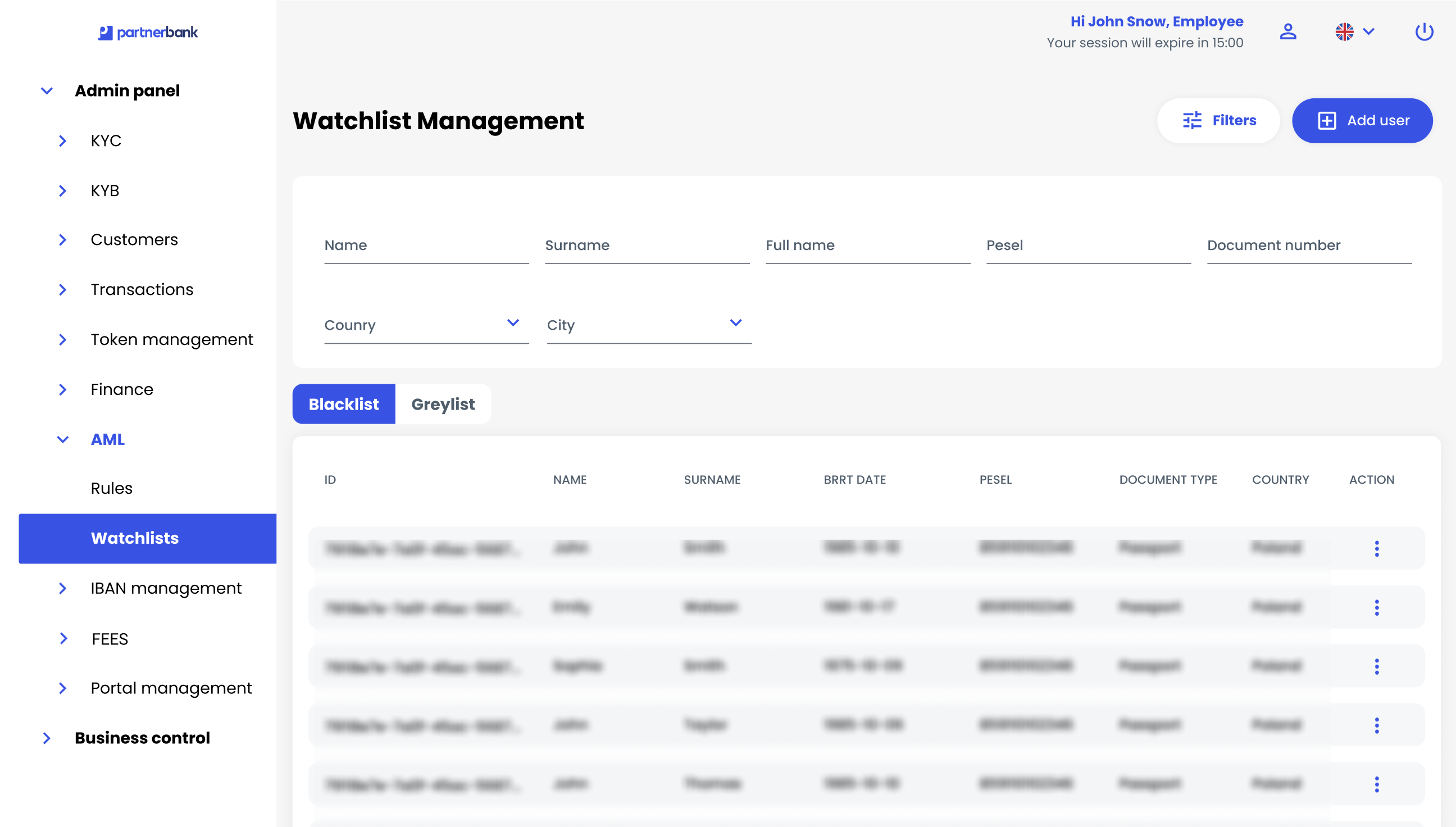

The watchlist management page includes filters to narrow down the list of users:

Filter	Description
Name	Filter by name (first name).
Surname	Filter by surname.
Full name	Filter by full name (first and last names together).
Pesel	Filter by personal identification number (PESEL).
Document number	Filter by identification document number.
Country	Filter by country (dropdown).
City	Filter by city.

Blacklist table

The blacklist displays the following columns for each entry:

Column	Description
ID	Internal identifier for the entry (UUID shown truncated).
NAME	First name of the user.
SURNAME	Surname of the user.
BIRTH DATE	Birth date of the user.
PESEL	Personal identification number (PESEL for Polish users).
DOCUMENT TYPE	Type of identification document.
COUNTRY	Country.
ACTIONS	Menu for managing the entry (delete).

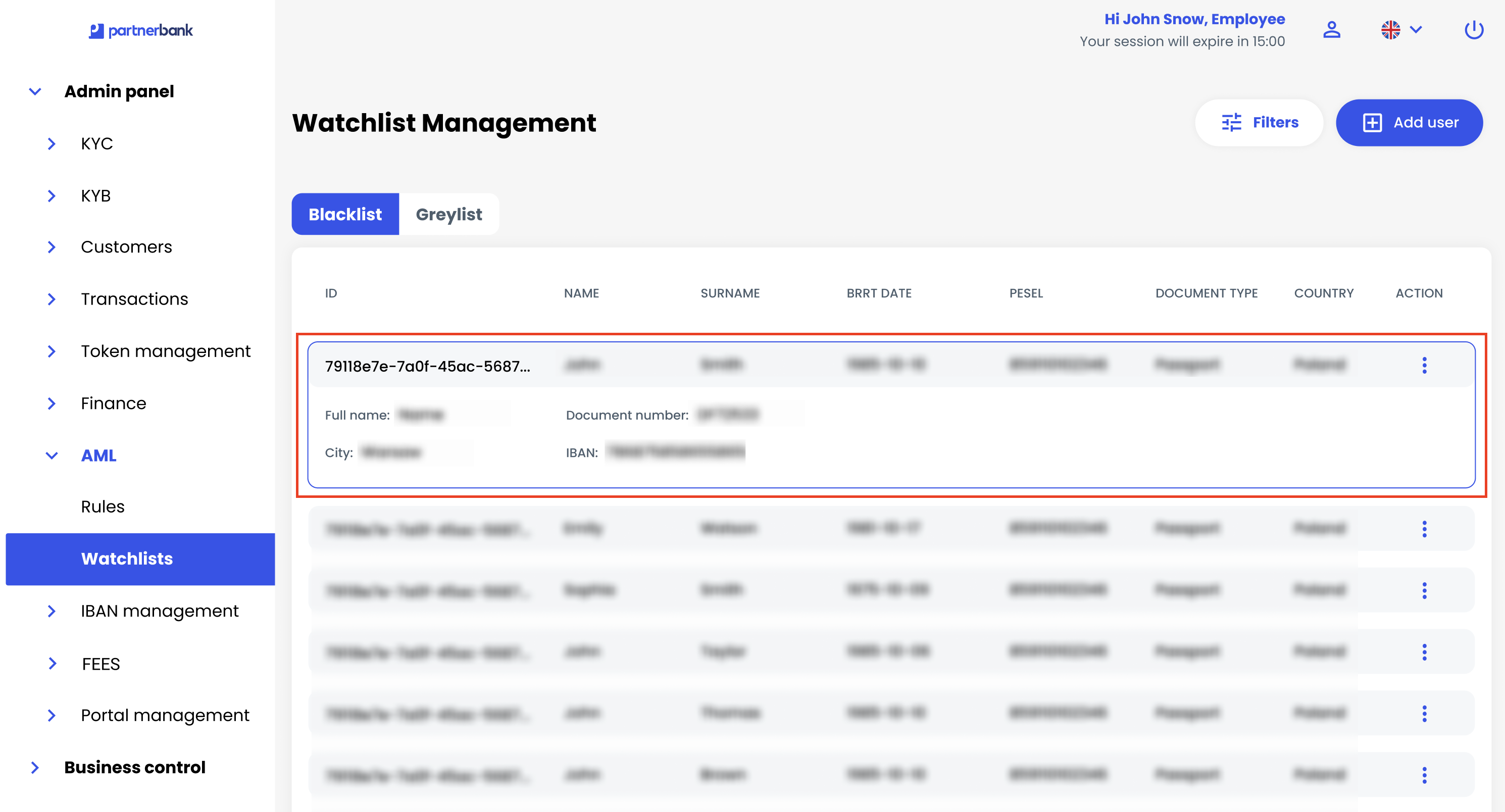

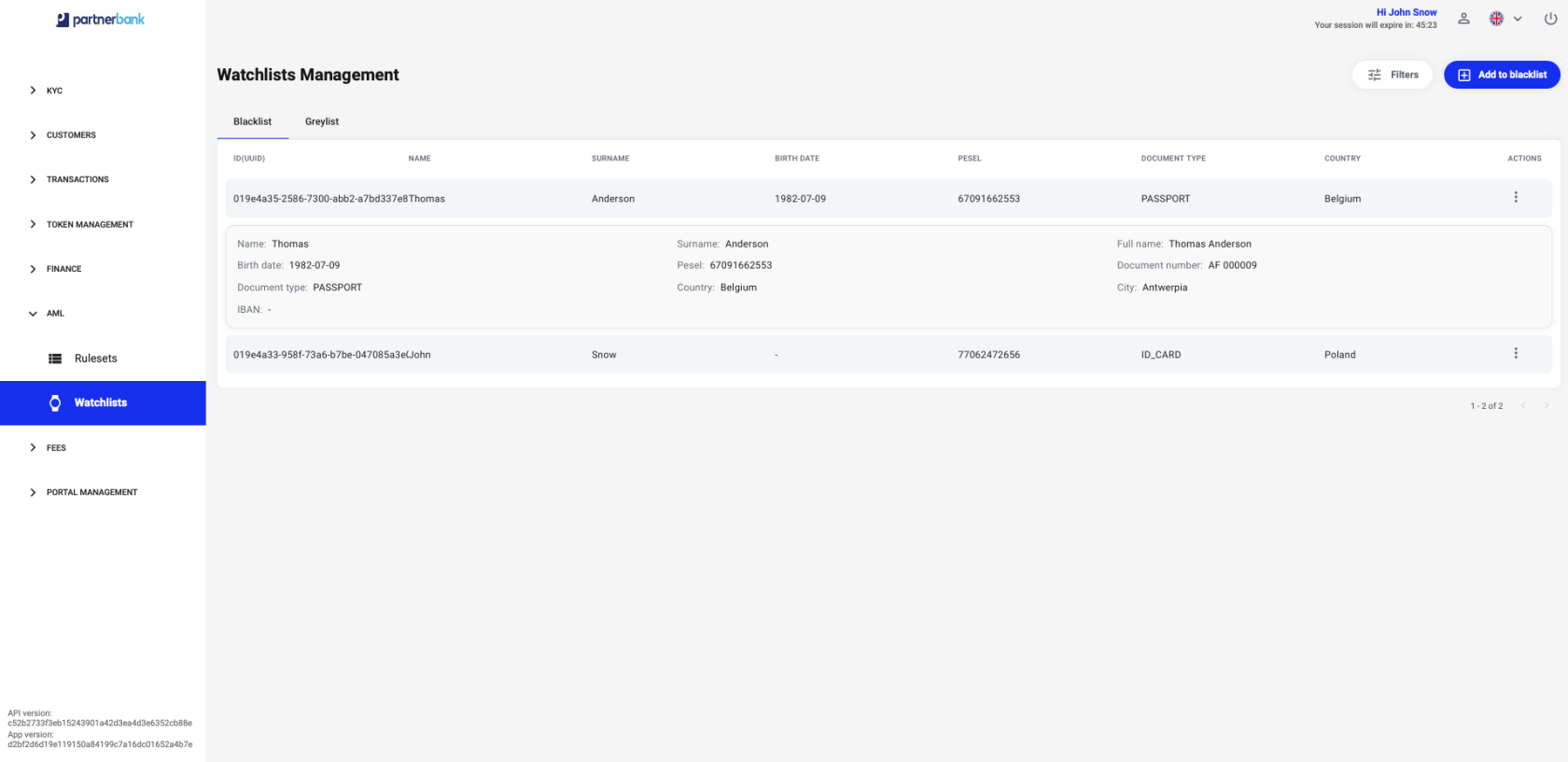

Blacklist record details

To view detailed information about a specific entry on the blacklist, click on the row in the table. An expanded section will appear below the row showing additional details about the user:

Field	Description
Full name	The user’s full name.
Document number	The identification document number associated with the user.
City	The user’s city.
IBAN	The user’s bank account number, if provided.

Greylist

The greylist is functionally identical to the blacklist.
All operations — adding users, removing users, filtering and managing entries — are the same.

Refer to the Blacklist section above for full instructions.
